About the Project
Most of the times, especially with digital circuits we turn on the power supply and set it to either 3.3V or 5V. But what happens if you'd like a typical voltages such as 24V, 12V, 5V,3.3V & 1.8V? Getting 5 different power supplies is a hard sell.
The Universal Power Supply was developed and it works by using the mains AC power source (110V @ 60Hz or 220V @ 50 Hz) and can provide the following voltage outputs:
- 24V @ 3A
- 12V @ 5A
- 5V @ 5A
- 3.3V @ 7A
- 1.8V @ 2A

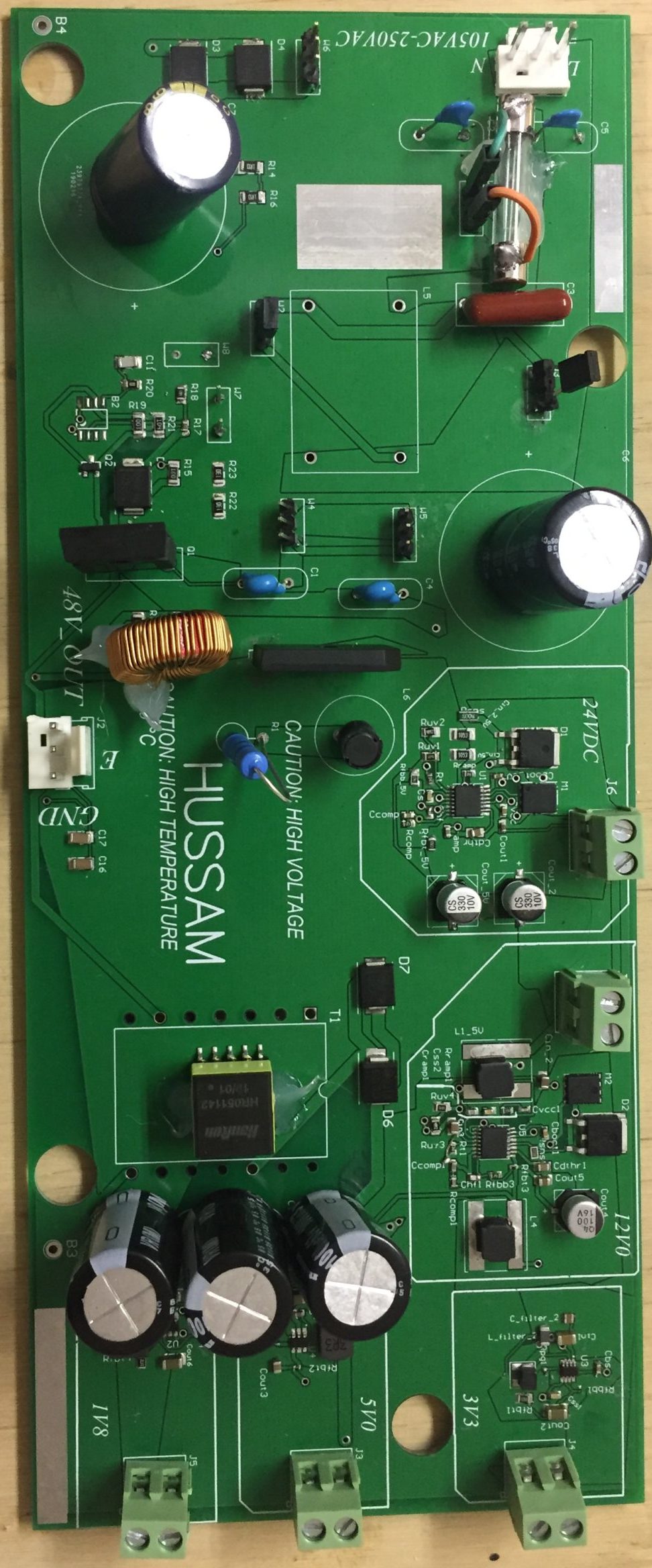

The PCB itself is protected by a means of a fuse and the user is isolated via a transformer.
-
ProjectUniversal Power Supply
-
Year2020
-
RoleEngineer
